ZHKY2050 Dynamic Force Rotary Shaft Torque Sensor High RPM and Accurate 0.3% Accuracy for Precise Force Monitoring

Name: ZHKY2050 Dynamic Force Rotary Shaft Torque Sensor High RPM and Accurate 03 Accuracy for Precise Force Monitoring
Brand: Sensorcon
Price: 430 USD

China ZHKY2050 Dynamic Force Rotary Shaft Torque Sensor High RPM and Accurate 0.3% Accuracy for Precise Force Monitoring wholesale

Series : ZHKY

Features : Contactless

Mounting Type : Consultation available

Description : Torque sensor, rotary torque sensor

Model Number : ZHKY2050

Type : Torque sensor

Place of Origin : Guangdong, China

Brand Name : Sensorcon

Use : torque, speed , power measure

Theory : strain gauge torque sensor

Output : frequency and pulses, 5-15KHZ/ 4-20 mA/ 0-20mA/ 0-10v/ 0-5v

Model : ZHKY2050 dynamic force rotary shaft torque sensor

Material : Aluminum housing, stainless steel shaft

Capacity range : 50N.m - 500N.m

Accuracy : 0.3%/0.2%/ 0.1%

Power supply : ±15 VDC or 24 VDC

Max rotation speed : 8000 rpm

Speed output : 60 or 120 pulses

Optional : Angle measurement

Price : $430-700/pieces

Contact Now

ZHKY2050 series high RPM analog dynamic force rotary shaft torque sensor price

ZHKY2050 Dynamic Force Rotary Shaft Torque Sensor High RPM and Accurate 0.3% Accuracy for Precise Force Monitoring

Product Overviews

Model: ZHKY2050

Item: Noncontact rotary torque sensor

Capacity: 5, 10, 20, 30, 50, 100, 200, 300, 500N.m

Material: Aluminum body, stainless steel shaft

Precision: ±0.3 %F.S, ±0.2 %F.S, ±0.1%

Application: Motor, etc.

Speed measure: YES, max. 8000RPM

If you need higher speed measure MAX.15,000, please refer to ZHKY2051

(Optional accessories available)

Build-in display: Torque speed power display

External Torque speed power display- PY802

English Software

Features:

1, Small size, non-contact rotary torque sensor on the basis of the special technology of strain bridge.

2, Suitable for all kinds of torque measurement occasions requiring small size high speed.

3, Outputs 5~15kHz frequency, or 0-5V, 0-10V, 4~20mA signal, suitable for long distance transmission.

4, Small in size, easy to use and install and strong signal anti-interference ability.

5, It is non-contact, wear-free, suitable for long-term high-speed rotation.

Parameter:

Torque capacity	5, 10, 20, 30, 50, 100, 200, 300, 500N.m can customize to 1000N.m, 2000N.m or higher..
Speed range	0,100,200-1000,4000,6000,7000, 8000 Varies with Capacity
Excitation voltage:	12-30VDC 15V DC (for frequency signal output), 24V DC (for voltage or current signal output)
Torque signal output	10±5 KHZ (Zero 10kHz) default 4~20mA, 0±5/10VDC, 0-5/10VDC, RS485/RS232
Speed signal output	60 pulse TTL, on-off output 0-5/10VDC, 4-20mA, RS485/ RS232
Accuracy	±0.3% F.S / ±0.2% F.S/±0.1% F.S
Temp Effect on Zero-%RO/	±0.02
Temp Effect on Range-%RO/	±0.02
Working Temperature range:	0 ~ +50℃
Compensated temperature range	0~+60℃
Electrical connection	6-pins, 8 pins
Safety overload:	200 %F.S
Material	Aluminum body, stainless steel shaft
Cable length:	5 m
Cable connection:	Red: Exc+ Black: Exc - Green: Signal + White: Signal-

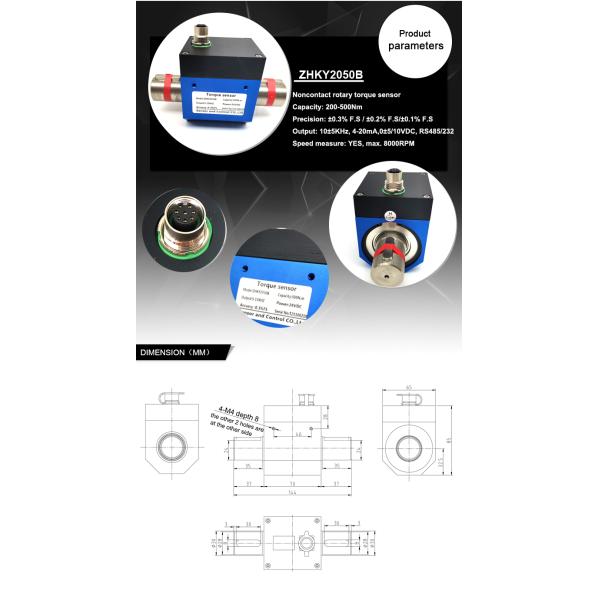

ZHKY2050 Dynamic Force Rotary Shaft Torque Sensor High RPM and Accurate 0.3% Accuracy for Precise Force Monitoring

Capacity (N.m)	A	B	C	D	E	F	G	H	h	I	J	K	L	M
5,10,20,30,50,100	133	70	55	75	30	24	3.5	18	6	23	27.5	27	15	40
200, 300, 500	144	70	65	85	35	30	3	28	8	29	32.5	28	12	46

Accessories

ZHKY2050 Dynamic Force Rotary Shaft Torque Sensor High RPM and Accurate 0.3% Accuracy for Precise Force Monitoring

Product Uses

ZHKY2050 Dynamic Force Rotary Shaft Torque Sensor High RPM and Accurate 0.3% Accuracy for Precise Force Monitoring

Company Information

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

ZHKY2050 Dynamic Force Rotary Shaft Torque Sensor High RPM and Accurate 0.3% Accuracy for Precise Force Monitoring

Packaging & Shipping

ZHKY2050 Dynamic Force Rotary Shaft Torque Sensor High RPM and Accurate 0.3% Accuracy for Precise Force Monitoring

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
