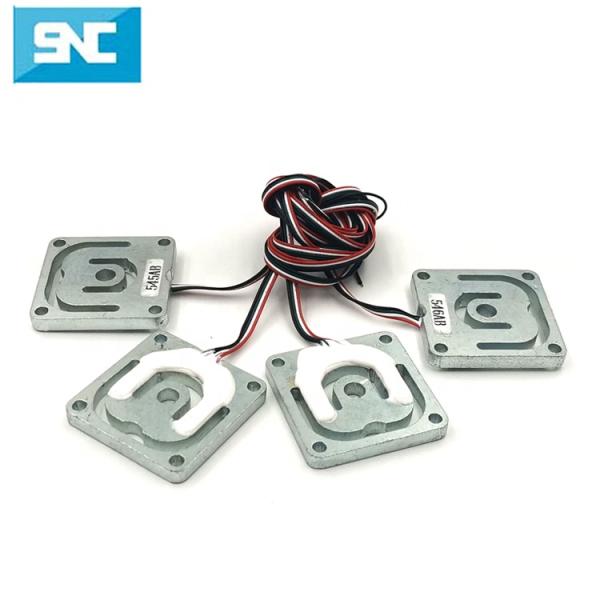

Mounting Type Screw Installation Miniature Micro Force Weight Sensor 5kg 10kg 20kg 30kg 50kg 75kg 100kg 150kg for Body Scale

Series : thin flat micro weight sensor load cell

Features : super thin and flat

Mounting Type : screw installation

Description : thin flat micro weight sensor load cell, flat and thin micro load cell

Model Number : SC134

Type : Full bridge weight sensor

Place of Origin : Guangdong, China

Brand Name : SNC

Use : weight measure

Theory : strain gauge sensor

Output : 1.6mv/v

item : SC134 Full bridge weight sensor

Capacity : 5kg, 10kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg, 300kg

rated output : 1.6 ±0.2mV/V

Excitation voltage : 3V-12VDC

Connector : support JST or other connectotrs

Optional : HX711 load cell amplifier

Size : 34 x 34 x H mm

Accuracy : 0.05% F.S

Application : weight measure, body scale. etc

Warranty : 12 months

MOQ : 4 pieces

Price : $2-3.50/pieces

Contact Now

Full bridge 4 wires SC134 flat thin miniature micro force weight sensor small load cell 10kg 20kg 30kg 50kg 75kg 100kg 150kg

Mounting Type Screw Installation Miniature Micro Force Weight Sensor 5kg 10kg 20kg 30kg 50kg 75kg 100kg 150kg for Body Scale

Product Description

Features:

Model: SC134
Capacity: 5kg 10kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg, 300kg
Type: Full / half bridge load cell
Material: Manganese steel IP66 waterproof
Application: Kitchen scale, body scale and other weighing devices.

Parameters:

Rated capacity	5kg 10kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg, 300kg
Zero balance	±0.5mV/V
Output sensitivity	0.8±0.2mV/V—Half Bridge, 1.6±0.2mV/V-Full Bridge
linearity	0.05%F.S
Repeatability	0.05%F.S
Hysteresis error	0.05%F.S
Creep	0.05%F.S/1min
Comprehensive error	0.05%F.S
Temp. effect on span	0.1%F.S/10℃
Temp. effect on zero	0.2%F.S/10℃
Input resistance	1000±10Ω
Output resistance	1000±10Ω
Insulation resistance	≥2000MΩ (10VDC)
Excitation voltage	3~10VDC
Operating temp.range	-10~+60℃
Defend grade	IP66
Material	alloy steel
Cable (Full bridge)	Red, Black, White (Green)
Safe Overload F.S	150%F.S
Ultimate overload	150±10kg
Wiring	Red(input+) Black(input-) White(output-) Green(output+)
Item	Full bridge / half bridge load cell

Mounting Type Screw Installation Miniature Micro Force Weight Sensor 5kg 10kg 20kg 30kg 50kg 75kg 100kg 150kg for Body Scale

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

Mounting Type Screw Installation Miniature Micro Force Weight Sensor 5kg 10kg 20kg 30kg 50kg 75kg 100kg 150kg for Body Scale

Packaging & Shipping

Mounting Type Screw Installation Miniature Micro Force Weight Sensor 5kg 10kg 20kg 30kg 50kg 75kg 100kg 150kg for Body Scale

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.

Mounting Type Screw Installation Miniature Micro Force Weight Sensor 5kg 10kg 20kg 30kg 50kg 75kg 100kg 150kg for Body Scale

Full bridge 4 wires SC134 flat thin miniature micro force weight sensor small load cell 10kg 20kg 30kg 50kg 75kg 100kg 150kg
