Industrial Grade Load Cell C3 50kg 100kg 150kg 200kg 250kg 300kg for Heavy-Duty Weighing Needs

Hunan Jinlian Cloud Information Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

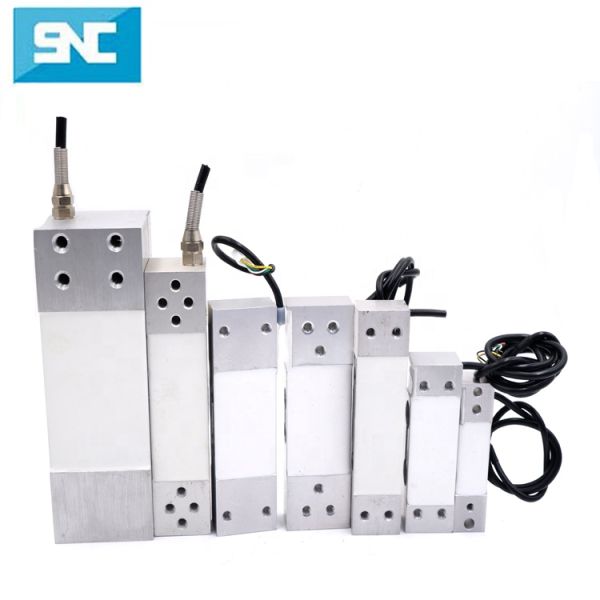

Industrial Grade Load Cell C3 50kg 100kg 150kg 200kg 250kg 300kg for Heavy-Duty Weighing Needs

Series : C3 grade load cell

Features : aluminum load cell

Mounting Type : screw installation

Description : Load cell Single Point 100kg 200kg 300kg, SC649D load cell

Model Number : SC649D

Type : Load Cell

Place of Origin : Guangdong, China

Brand Name : SNC

Use : weight measure

Theory : analogue sensor

Output : 2mv/v

Model : SC649D load cell

Material : aluminum alloy load cell

Capacity : 50kg 100kg 150kg 200kg 250kg 300kg

Accuracy class : C3

rated output : 2.0±0.2mV/V

Comprehensive error : ±0.03/±0.017

IP grade : IP65

Cable : 4*420mm

Size : 150 x40 x 44mm

application : beehive scale, table top scale

MOQ : 10 pieces

Price : $20-25/pieces

Contact Now

Load Cell C3 50kg 100kg 150kg 200kg 250kg 300kg

Industrial Grade Load Cell C3 50kg 100kg 150kg 200kg 250kg 300kg for Heavy-Duty Weighing Needs

Product List

Sensorcon Product Lists
Strain Gauge Load Cell Torque Sensor Display
Linear Strain gauge-AA Wireless sensor Slip ring rotary torque sensor Platform scale display
Half bridge strain gauge-BB,HA,GB,FB Micro load cell Contactless rotary torque sensor Truck scale display
Shear/torque strain gauge-AB,HA Single point load cell Static torque sensor Controller
Full bridge strain gauge-EB, FG,FD Button load cell Meters Junction box
Tee Rosettes strain gauge-CA,BA Shear beam load cell Coupling Big screen display
Round type strain gauge S type load cell Amplifier
Semi-conductor strain gauge Column load cell
Bridge type load cell

Product Description

Features:

Model: Load cell SC649D

Capacity: 50kg to 300kg

Material: Aluminum alloy, Silicon adhesive sealed, surface anodized, anti-corrosion

Application: pricing scales, platform scales and other electronic weighing devices.

Industrial Grade Load Cell C3 50kg 100kg 150kg 200kg 250kg 300kg for Heavy-Duty Weighing Needs

Parameters:

Capacity

kg

50/100/150/200/250/300

Accuracy

C3D

C3

C3G

Approvals

OIML R60 C3

Maximum number of
verification intervals

n max

2500

3000

4000

Minimum load cell verification interval

v min

Emax/5000

Emax/7000

Emax/11000

Combined error

(%FS)

≤±0.030

≤±0.020

≤±0.015

Creep

(%FS/30min)

≤±0.020

≤±0.0167

≤±0.0125

Temperature effect on sensitivity

(%FS/10)

≤±0.021

≤±0.0175

≤±0.0131

Temperature effect on zero

(%FS/10)

≤±0.028

≤±0.020

≤±0.0127

Output sensitivity

(mv/v)

2.0±0.2

Input resistance

(Ω)

406±6

Output resistance

(Ω)

350±3

Insulation resistance

(MΩ)

≥5000(50VDC)

Zero balance

(%FS)

2

Temperature,compensated

()

-10~+40

Temperature,operating

()

-35~+65

Excitation, Recommended

(V)

5~12(DC)

Excitation,Max

(V)

18(DC)

Safe overload

(%FS)

150

Ultimate overload

(%FS)

300

Corner correction

0.02% load value/100mm

Accessories

Industrial Grade Load Cell C3 50kg 100kg 150kg 200kg 250kg 300kg for Heavy-Duty Weighing Needs

Application:
Industrial Grade Load Cell C3 50kg 100kg 150kg 200kg 250kg 300kg for Heavy-Duty Weighing Needs
Related Products
Industrial Grade Load Cell C3 50kg 100kg 150kg 200kg 250kg 300kg for Heavy-Duty Weighing Needs

Production Process

Industrial Grade Load Cell C3 50kg 100kg 150kg 200kg 250kg 300kg for Heavy-Duty Weighing Needs

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

Industrial Grade Load Cell C3 50kg 100kg 150kg 200kg 250kg 300kg for Heavy-Duty Weighing Needs

Industrial Grade Load Cell C3 50kg 100kg 150kg 200kg 250kg 300kg for Heavy-Duty Weighing Needs

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
