SC913A Kitchen Scale Load Cell with 3kg Capacity and Rated Output of 1.0±0.15mV/V

Series : Micro Load Cell

Features : Half Bridge Mini Sensor

Mounting Type : Fixed installation

Description : Can be consulted, SC913A

Manufacturing Date Code : 2023-5-5

Model Number : SC913A

Type : Load Cell, half bridge (3 wires)

Place of Origin : Guangdong, China

Brand Name : SNC

Use : Force measurement

Theory : strain gauge sensor

Output : mV/V

Model : SC913A

Material : Alloy steel

Capacity : 3kg

rated output : 1.0±0.15mV/V

Accuracy class : 0.05% FS

IP grade : IP65 waterproof

Size : 26*26*1.0mm

Ultimate overload : 150% F.S

Application : small scale, force / weight measurement

MOQ : 4 sets

Price : $2.80/sets 4-39 sets

Contact Now

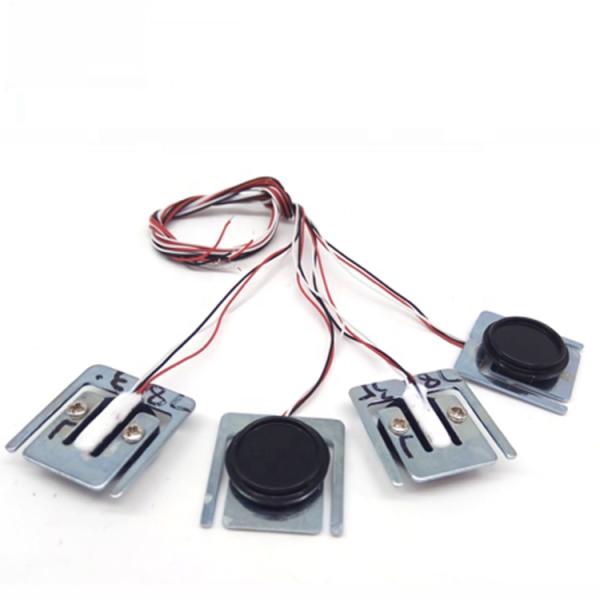

SC913A kitchen scale load cell thin micro load cell 3kg

Product Description

SC913A Kitchen Scale Load Cell with 3kg Capacity and Rated Output of 1.0±0.15mV/V

Parameters

Model	SC913A
Capacity:	3kg
Accuracy:	0.05%FS
Rated output:	1.0±0.15mV/V
Non-linearity:	±0.1%FS
Hysteresis:	±0.1%FS
Repeatability:	±0.05%FS
Creep:	±0.15%FS/3min
Zero balance:	±0.5mV/V
Input resistance	500±10Ω:
output resistance:	500±10Ω:
Insulation resistance:	≥2000MΩ
Excitation voltage:	5~10VDC
Operating temperature:	-10~+40ºC
temp effect on zero:	±0.1%FS/10ºC
Temp effect on span:	±0.1%FS/10ºC
Ultimate overload:	150%F.S
Application	Kitchen scale, small weight scales, force test

SC913A Kitchen Scale Load Cell with 3kg Capacity and Rated Output of 1.0±0.15mV/V

Load cell Accessorie

SC913A Kitchen Scale Load Cell with 3kg Capacity and Rated Output of 1.0±0.15mV/V

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

SC913A Kitchen Scale Load Cell with 3kg Capacity and Rated Output of 1.0±0.15mV/V

Why Choose Us

SC913A Kitchen Scale Load Cell with 3kg Capacity and Rated Output of 1.0±0.15mV/V

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.

SC913A Kitchen Scale Load Cell with 3kg Capacity and Rated Output of 1.0±0.15mV/V

SC913A kitchen scale load cell thin micro load cell 3kg
