Series : Micro load cell
Features : small size, small capacity
Mounting Type : screw installa
Description : micro load cell, Single Point Load Cell
Model Number : SC133
Type : Load Cell
Place of Origin : Guangdong, China
Brand Name : Sensorcon
Use : PRESSURE SENSOR
Theory : Resistance Sensor
Output : Analog SENSOR
Model : SC133
Item : mini load cell
Material : Aluminum Alloy
Capacity : 1kg--50kg
rated output : 1.0±0.15mV/V
Accuracy class : 0.05% FS
IP grade : IP65 waterproof

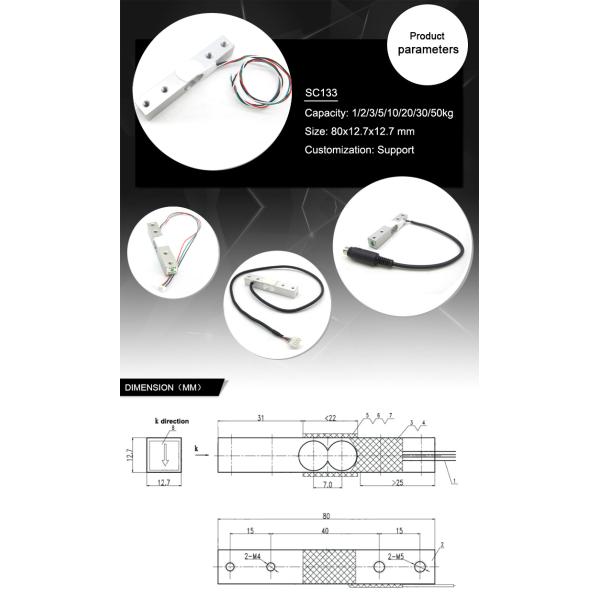

Size : 80x12.7x12.7mm
Connector : JST or others customer appointed connectors
Application : small scale, force / weight measurement
MOQ : 10 pieces
Price : $2.50/pieces 10-49 pieces
Parameters

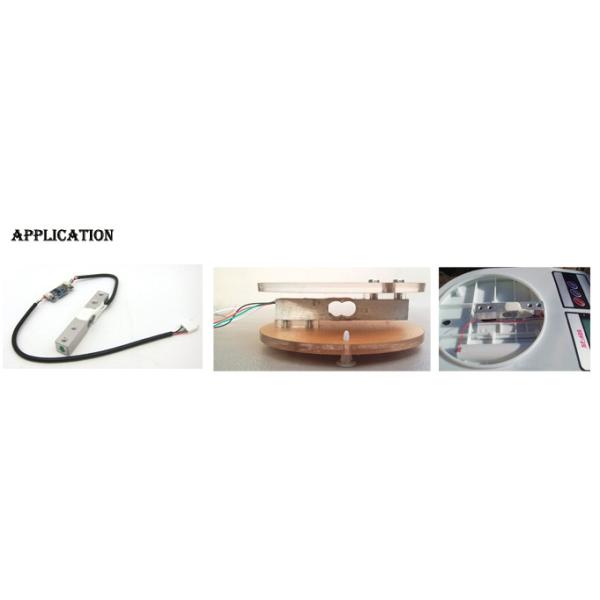

Application | kitchen scale, pricing scale, small weighing scale, force test equipment |
Capacity | 1kg, 2kg 3kg 5kg 100kg 20kg 30kg 50kg |
Comprehensive Error | 0.05 |
Output sensitivity | 1.0±0.1mV/V |
Nonlinearity | 0.05% F.S. |
Repeatability | 0.05% F.S. |
Hysteresis | 0.05% F.S. |
Creep | 0.05 (3min) % F.S. |
Zero balance | 0.05 (1min) % F.S. |
Temperature effect on zero | 0.2 % F.S./10℃ |
Temp. effect on span | ≤0.15 F.S./10℃ |
Zero output | ±0.1 MV/V |
Input resistance | 1000±50 ohm |
Output resistance | 1000±50 ohm |
insulation resistance | ≥2000 MΩ |
Recommended excitation voltage | 5-10V |
Ultimate overload | 150%F.S. |
Load cell material | Aluminum alloy |
Wiring | Red- input+, black- Input-. Green- Output+, White- output - |
Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
