100x30x22mm C3 High Accuracy Electronic Platform Scale Weight Sensor Single Point Load Cell 1kg 5kg 10kg 40kg Analog

Series : Parallel beam load cell

Features : Can be consulted

Mounting Type : Can be consulted

Description : Can be consulted, SC603 Load Cell

Model Number : SC603

Type : Load Cell

Place of Origin : Guangdong, China

Brand Name : SNC

Use : PRESSURE SENSOR

Theory : Resistance Sensor

Output : Analog SENSOR

Model : SC603

Material : Aluminum alloy

Capacity : 3kg, 5kg, 6kg, 10kg, 15kg, 20kg, 30kg, 40kg, 50kg, 60kg, 100kg, 120Kg

Accuracy class : 0.02%F.S

rated output : 2.0±0.15mV/V

safe over load : 150% RO

Ultimate over load : 200% RO

IP grade : IP65

Customized : available

application : electronic scale, table top scale, pricing scale, fore test equipment

MOQ : 4 pieces

Price : $6.50/pieces 4-9 pieces

Contact Now

100x30x22mm C3 high Accuracy Electronic platform scale weight sensor Single Point Load Cell 1kg 5kg 10kg 40kg

Product Description

Features:

Model: SC603

Rated load: 3kg, 5kg, 10kg, 15kg, 20kg, 30kg, 40kg, 50kg, 60kg, 100kg

Precision: 0.03%/ 0.02%/ 0.01%/ 0.001% /0.0005% (extra high)

Material: Aluminum alloy

Apply to: Electronic scale, platform scale, pricing scale, force test

Main features: Hermetically sealed with glue to IP65,

Surface anodized and anti-corrosion, integral structure, easy installation.

Size: 100x30x22 mm, Thread hole: 4-M6, Cable: φ4×420mm

Note: Customized cable length support, but recommend original cable length.

Parameters:

Capacity	3kg, 5kg, 10kg, 15kg, 20kg, 30kg, 40kg, 50kg, 60kg, 100kg
Rated Output	2.0±0.2 mV/V
Comprehensive Error	0.03% F.S
Non-linearity	0.03 %F.S
Hysteresis	0.03 %F.S
Repeatability	0.03 %F.S
Creep	0.03 [(10 min)% F.S.]
Zero balance	±1.5%F.S
Temp. effect on zero	0.03%F.S/10℃
Temp. effect on span	0.03 %F.S/10℃
Zero Output	± 1.5 % F.S
Input impedance	350±5 Ω
Output impedance	350±5 Ω
Insulation resistance	≥5000 MΩ (50 VDC)
Temperature compensated range	-10~+40
Recommended excitation voltage	5-10 VDC
Safe overload	120% F.S
Ultimate Overload	150% F.S
Four corner error	0.02% F.S
Wire length	Φ4 x 420mm
Connection	Excitation: Red+, Black- Signal: Green+, White-

Parameters: 100 x 30 x 22mm

Installation reference.

Load cell with HX711 and Arduino

Load cell Accessorie

100x30x22mm C3 High Accuracy Electronic Platform Scale Weight Sensor Single Point Load Cell 1kg 5kg 10kg 40kg Analog

Application:

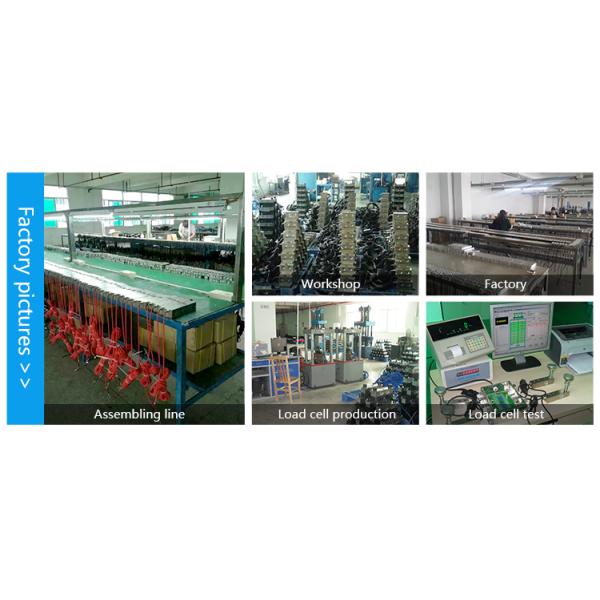

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

100x30x22mm C3 High Accuracy Electronic Platform Scale Weight Sensor Single Point Load Cell 1kg 5kg 10kg 40kg Analog

Packaging & Shipping

100x30x22mm C3 High Accuracy Electronic Platform Scale Weight Sensor Single Point Load Cell 1kg 5kg 10kg 40kg Analog

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
